Non-destructive Asphalt Density Testing Equipment
The PaveScan RDM 2.0 is our second-generation asphalt density assessment tool that is ideal for uncovering inconsistencies that occur during the paving process, including poor uniformity and significant variations in density. By detecting these problems, PaveScan RDM 2.0 helps to avoid premature failures such as road raveling, cracking and deterioration along joints.
04/24/2019: This pavement density measurement technology is now an accepted AASHTO spec, #PP 98-19.
Specifications:
TABLET COMPUTER
DISPLAY 10.1″ WUXGA 1920 x 1200 with LED backlighting
PROCESSOR Intel® i5-7300U
AVAILABLE PORTS Ethernet, USB, HDMI
BATTERY Li-Ion Battery Pack (10.8 V), 4 hours
OPERATING TEMPERATURE -28°C to 60°C (-18°F to 140°F)
ENVIRONMENTAL RATING IP65
DROP SPEC MIL-STD-810G
SYSTEM SPECIFICATIONS
DATA FORMAT .csv
MAXIMUM OUTPUT RESOLUTION .4 inch (1 cm)
OPERATING MODE Survey wheel distance based data collection
POWER SOURCE 2 x 10.8V 8.2AH batteries
DIAGNOSTIC Battery indicator status, hard disk capacity
MEASUREMENT SPECIFICATION
REPEATABILITY (DIELECTRIC) +/- 0.08 (value obtained from HDPE validation blocks)
ACCURACY (DIELECTRIC) +/- 0.08 (value obtained from HDPE validation blocks)
MINIMUM/MAXIMUM DIELECTRIC 2 to 16
MECHANICAL
DIMENSIONS One sensor cart system – 36.9 kg (81.4 lbs), Three sensor cart system – 42.9 kg (94.6 lbs)
ENVIRONMENTAL RATING IP65
OPERATING TEMPERATURE -28°C to 60°C (-18°F to 140°F)
STORAGE TEMPERATURE -55°C to 85°C (-67°F to 185°F)

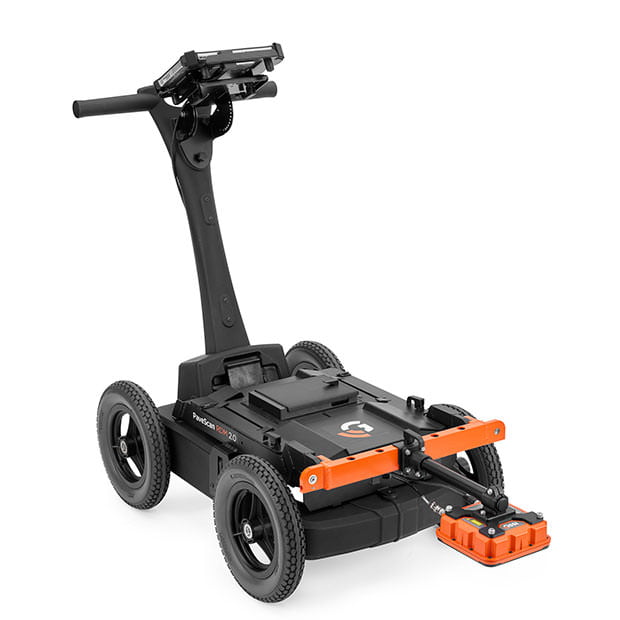

Product Picture
