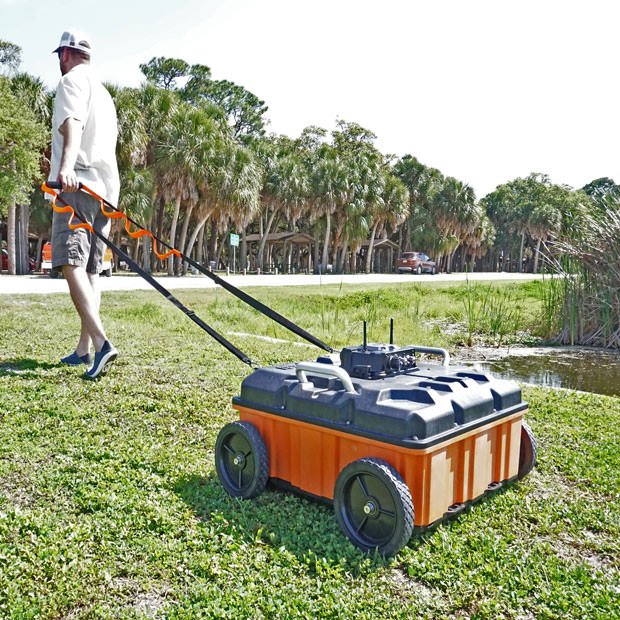

Rugged, Wireless Low Frequency 200 MHz GPR System
GSSI introduces the GS Series, our next-generation family of high-performance antennas targeting applications that require deeper penetration depths. The first antenna in the series is the 200 HS. This digital, wireless antenna features a 200 MHz center frequency and employs GSSI’s proprietary HyperStacking® technology. This technology improves signal to noise performance and increases depth penetration under all soil conditions. The GS Series is ideal for geophysical, geotechnical, and environmental applications that require high reliability under challenging survey conditions.

Specifications:
200 HS ANTENNA
CENTER FREQUENCY 200 MHz
MAX DEPTH 21 m (70 ft)*
BATTERY LIFE 4 hours
ENVIRONMENTAL RATING IP65
VIBRATION Mil-STD-810G Method 514.6C Category 9
OPERATING TEMPERATURE -10°C to 40°C external (14°F to 104°F)
WEIGHT 17.9kg (39.6 lbs)
DIMENSIONS 64.8 x 64.8 x 34.3 cm (25.5 x 25.5 x 13.5 in)
MODEL 50200HS
DATA ACQUISITION
DATA FORMAT RADAN® (dzt)
OUTPUT DATA FORMAT 32-bit
SCAN INTERVAL Up to 200 scans/sec
NUMBER OF SAMPLES PER SCAN 512, 1024, 2048, 4096, 8192
OPERATING MODES Continuous (time), Survey Wheel (distance triggered), or Point Mode
TIME RANGE 0-16,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
SIGNAL-TO-NOISE RATIO 171 dB
STANDARD REAL-TIME FILTERS Infinite Impulse Response (IIR) – Low and High Pass, vertical and horizontal
ADVANCED REAL-TIME FEATURES Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal, Dynamic Gain Control
INTERNAL GPS ACCURACY Autonomous 2.5 m (8.2 ft), SBAS 2.0 m (6.6 ft)
EXTERNAL GPS Bluetooth
WIRELESS RANGE 15 m (50 ft)
INPUT/OUTPUT USB, rugged Ethernet, survey wheel and marker input, digital connector
* Under ideal soil conditions
