R-Evolution – OH Manual Corrosion Mapping Scanner

Phoenix ISL – R-Evolution

R-Evolution is an ultrasonic array probe housed in a lightweight water-filled roller, delivering fast immersion quality C-scan inspections in the palm of your hand.

Designed to minimise operator fatigue, it is small and light making it ideal for use on large areas and particularly overhead inspections.


• Applications Typical applications for R-Evolution include.

• Aerospace – In-service c-scans, Bond Inspection, Delamination or defect detection in composites.

• Wind Energy – Blade spar, leading and trailing edge bond inspection.

• Pipelines and Vessels – Corrosion mapping, Bond testing on overlapping joints.

Ergonomic in design, R-Evolution contains an ultrasonic array probe, mounted in a small diameter, water-filled roller. With its durable thin tyre, high frequency probes can be used to give excellent near surface resolution enabling the inspection of thin components.

R-Evolution’s buggy self-normalises on curved surfaces ensuring the array is perpendicular without adjustment. The array angle can additionally be easily fine-tuned externally.

The buggy handle features two line lasers for guidance and buttons that can be configured with appropriate instruments to start, stop or increment scans.

R-Evolution has a single axis encoder for inspecting c-scan strips or can be attached to the Phoenix Tracer for a versatile and portable large area c-scan inspection system.


• Lightweight and ergonomic – < 1kg>

• High resolution with high frequencies – up to 10MHz.

• Self-normalises on curved components.

• Two guidance lasers mark the outer extents of the array.

• Compatible with Tracer for dual-axis, large area inspections.

• Indexing and start/pause buttons to interface with compatible instruments.

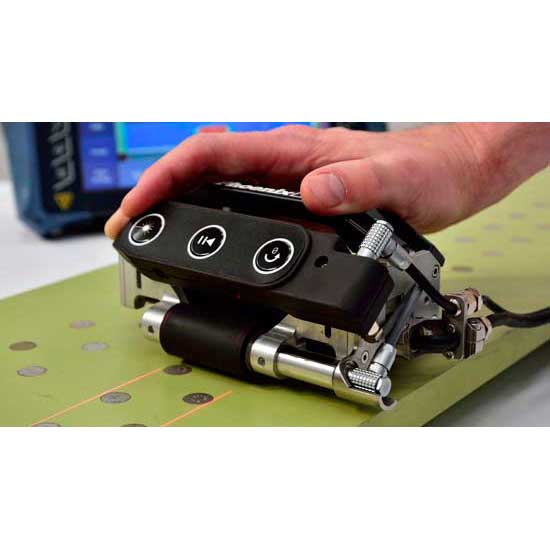

Product Picture
