Magnatest ECM 3.621 Compact Edition
Magnatest ECM 3.621 Compact Edition

NDT Instruments Indonesia
Jl. Sirsak / Casamora BB-1, Jagakarsa
Jakarta Selatan 12630
Jakarta Raya-Indonesia

t (62) 21 2943 0001 (Hunting)
f (62) 21 2943 0006

Integrated complete solution

MAGNATEST ECM CE is a compact, low-cost solution for magnetic induction material testing. It is compiled in one compact unit comprising of test instrument, panel PC with touchsceen, eddyAssist application software, and required accessories. The whole system comes fully configured and installed.

The 17'' TFT display shows test results as a colored graphic. The unit is operated automatically thanks to an installation and settings wizard. The instrument settings can be saved at any time and all test results logged.

Your advantages at a glance

  • Compact solution for magneto-inductive material testing based on the FOERSTER MAGNATEST ECM 3.621 TESTER
  • Integrated complete solution consisting of tester, panel PC with Windows® operating system and eddyAssist application software
  • Comfortable configuration of the testing and installation parameters
  • Online measured value display
  • Installation and optimisation wizards
  • Loading and saving of device settings to mass storage device
  • Test reports

Technical Data

Excitation frequency:2 Hz to 128 kHz, 17 levels
Throughput:depending on excitation frequency, approx. 10 items at 1 kHzTest resolution:manual, external, internal
Sorting threshold:circle, ellipse, rectangle
Operating softwareeddyAssistPanel PC:Windows® operating system

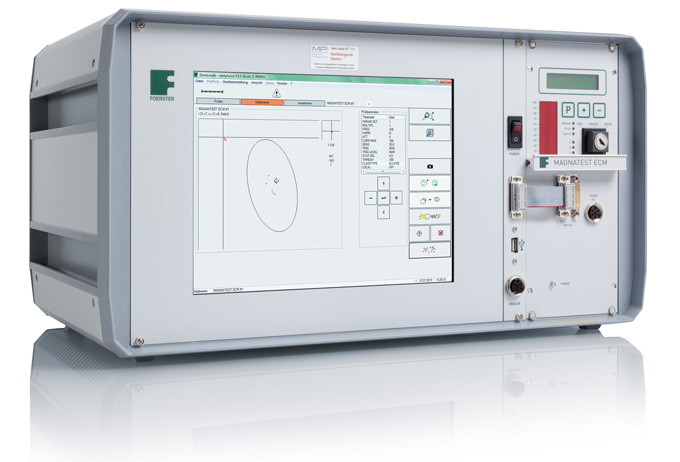

Product Picture
